Maximum lifting capacity: 2000 kg.
Accuracy: +/- 0.1% of the maximum capacity in the versions for internal use.
Accuracy: +/- 0.05% of the maximum capacity in the "M" approved versions.
Fork dimensions 1150 x 550 x 85 mm.
Weighs about 125 kg.
Structure in extra thick steel and oven-fire painted mechanics.
Steering wheels and double loading poliurethane rollers.
4 stainless steel IP68 load cells for the legal for trade use version, aluminium IP67 load cells for the internal use version.
Weight indicator in IP65 STAINLESS STEEL waterproof case, easy to clean and resistant to harsh and corrosive environments; large 25mm LCD display high contrast digits, which are clearly visible even in poor lighting conditions and with low temperatures, and waterproof membrane keyboard, with 17 functional keys.
Configuration, calibration and diagnostics from keyboard or PC with DINITOOLS.
Power supply through extractable rechargeable battery mounted on the pallet truck column.
The operating time is of about 80 hours of continuous use or one month with the tipycal non continuous use, thanks to its auto switch-off function.
Programmable auto power saving function.
Battery level indication.
Equipped with 230Vac 50 Hz battery charger.
Configurable RS232/C bidirectional port for connection to a printer, with customisable print format.
Configurable RS232/C bidirectional port for PC, modem radio or portable terminal.
IR input for remote control management.

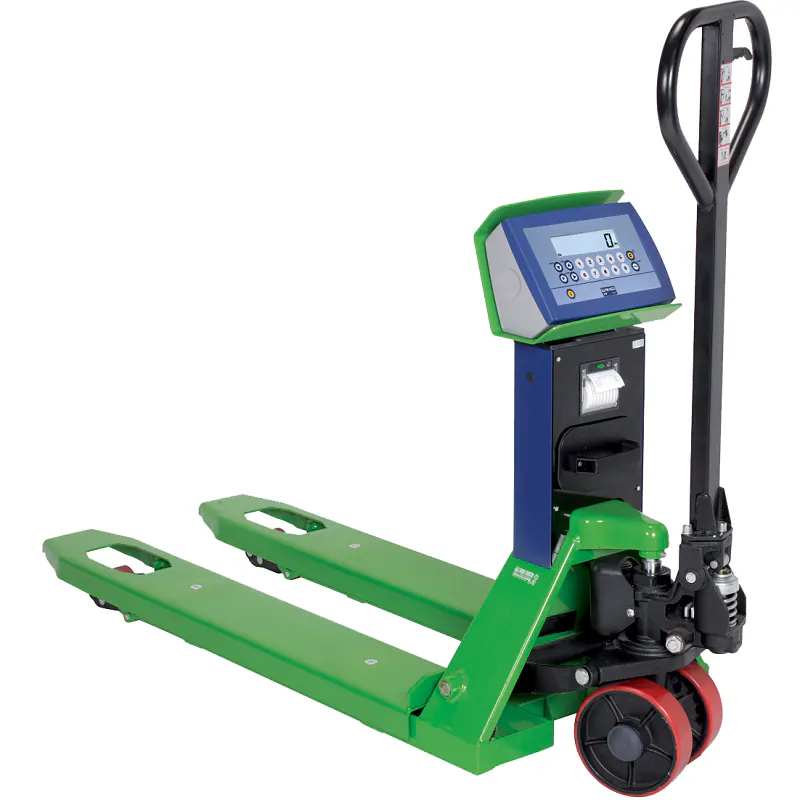

Fitted with thermal printer in the TPWLKP and TPWLKPM versions, with Date&Time card.
