Products > Bench Scales > PSS BENCH SCALE

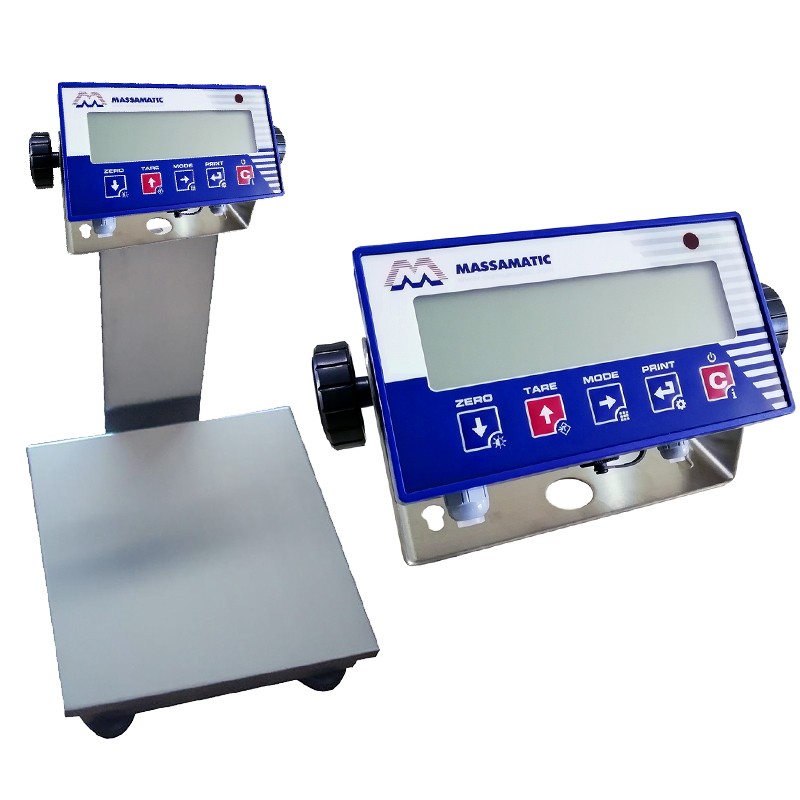

PSS BENCH SCALE
High performance and reliability at a competitive price. The DFWL or DFWLB indicator, mounted on a stainess steel bench scale, is versatile and easy to programme and use. The wide range of available functions and interfaces, make it suitable for many different kinds of industrial and commercial weighing applications. Suitable for pallet truck scales, fork lifts and automotive. Standard fitted with a support bracket with adjustable inclination, for use on the table, column or wall.
Enquire Now Download PDFINDICATOR SPECIFICATIONS:
DFWL MODEL
- Weight indicator with ABS case, 25mm backlit LCD display with 6 high contrast digits and icons for showing the active functions, 5 key functional waterproof keypad.
- Easy to clean ABS IP54 case, resistant to harsh and corrosive environments.
- Suitable for use on the table, column or wall.
- Supplied as standard with 4 A4 batteries extractable drawer (batteries not included), and 12V external power adpater (if connected it excludes the battery supply).
DFWLB MODEL
- 5 key functional waterproof keypad.
- Backlit 25mm LCD display with 6 high contrast digits with icons for showing the active functions.
- Easy to clean ABS IP68 case, resistant to harsh and corrosive environments.
- Suitable for use on the table, column or wall.
- Power supply through built-in rechargeable battery, with 60hrs operating time and fitted with external battery charger (to not use as power adaptor).
I/O SECTION
- RS232/C bidirectional port on RJ11 connector for quick connection (optional RS485) on screw terminal, configurable for PC, PLC or additional remote display.
- RS232/C bidirectional port configurable for connection to printer or labeller.
SELECTABLE FUNCTION MODES
- The user can select the operating modes directly using the dedicated key; high resolution display x 10; precision weighing with temporary recalibration via a sample weight (for internal factory use); Net/Gross; LB to KG converter; free conversion factor (for meter and litre counters, etc); weight totalizer; formulizer; +/- controller with quick target and threshold input; percentage weighing; piece counter; hold.
- Access to the user menu is gained using the dedicated key to adjust the weighing filter, date and time, setpoint and tare weight, which the user can access by entering a programmable access password.
PLATFORM SPECIFICATIONS:
SIZES AND FEATURES
- 300mm x 300mm; capacity 3kg, 15kg, 30kg.
- 400mm x 400mm; capacity 60kg.
- Stainless steel structure (grade 316).
- Buffering structure (stainless steel spring).
- Special column for Massamatic DFWL or DFWLB indicator series.
Included with Massamatic DFWL or DFWLB indicator (IP68, NRCS approved for prescribed purpose).
